PCB prototyping used to the nightmares of many electronics professionals. Explorer Technology now terminates the nightmares! We can get your first-try boards in 24 hours!

After placing your order, our engineer will audit your Gerber files to make sure it complies with our technical spec. Once the files pass the audit, you can pay the cost online. Also, our engineer will check again and optimize the files to make production.

The prototyping stage is the most critical period for engineers, students, and hobbyists. For manufacturing PCB, Explorer Technology has the experience of manufacturing PCB for more than 17 years(since 2003). Choosing Explorer Technology can not only shorten the manufacturing time of the PCB but also reduces the cost and get the high-quality boards. Our online PCB calculator will always show the cheapest price and production time.

Check Explorer Technology PCB manufacturing capabilities in the following table:

Feature	Capability
Min. Line Width	0.076mm/3mil
Min. Hole Size	0.15mm+-1mm
Min. Line Spacing	0.076mm/3mil
Copper Thickness	1oz---13oz
Base Material	Aluminum, FR4, Flex, Flex-rigid, HDI, Rogers, etc.
Board Thickness	0.2,0.4, 0.6,0.8,1.0,1.2,1.6,2.0,2.4 mm
Surface Finishing	HASL with lead HASL, Lead-free, Immersion gold, OSP, Hard Gold
Finsih Cooper	1-13oz
Solder Mask	Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green
Silkscreen	White, Black
Testing	Fly Probe Testing (Free) and A.O.I. testing
Build time	24 hours
Lead time	2-3 days

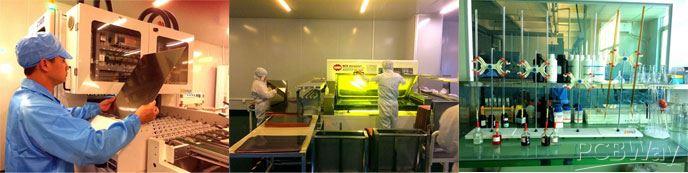

pcb prototype in Explorer Technology.jpg

Try now! More information please check:

PCB Instant Quote
