Explorer Technology gathers all the production elements of PCB, conducts a more specialized division of work, forms greater collaboration,
and provides customers with PCB products of higher quality, more cost-effective, and faster delivery.
Participators in total: 5,000+ Free orders in total: 6,000+
1 Layer PCB
≤100*150mm 1.6mm Fr-4
5pcs
Market price: $25
2 Layers PCB
≤100*150mm 1.6mm Fr-4
5pcs
Market price: $25
2 Layers PCB
≤100*150mm 1.6mm Fr-4
5pcs
Market price: $25
Thick copper
≤100*150mm 1.6mm Fr-4
5pcs
Market price: $25
A professional team, using automation, digitization to greatly improve pcb production efficiency and reduce PCB procurement costs.
12 Layers PCB 12 Layers FR4 S1000-2 4.0mm
Millimeter Radar 10 Layers MMR Radar Board 1.2mm
i.MX6 automotive cluster board 8 Layers FR4 S1000-2 1.0mm
Millimeter Radar 10 Layers FR4 S1000-2 1.0mm
i.MX8XP Domain Controller 8 Layers FR4 S1000-2 3.0mm
AI Camera Board 12 Layers FR4 S1000-2 2.0mm
i.MX8XP Domain Controller 8 Layers FR4 S1000-2 1.0mm
AI Camera Board 12 Layers FR4 S1000-2 1.0mm

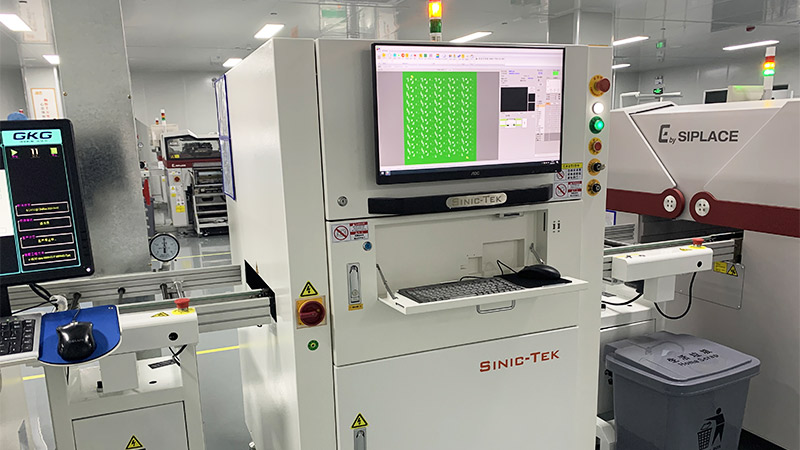

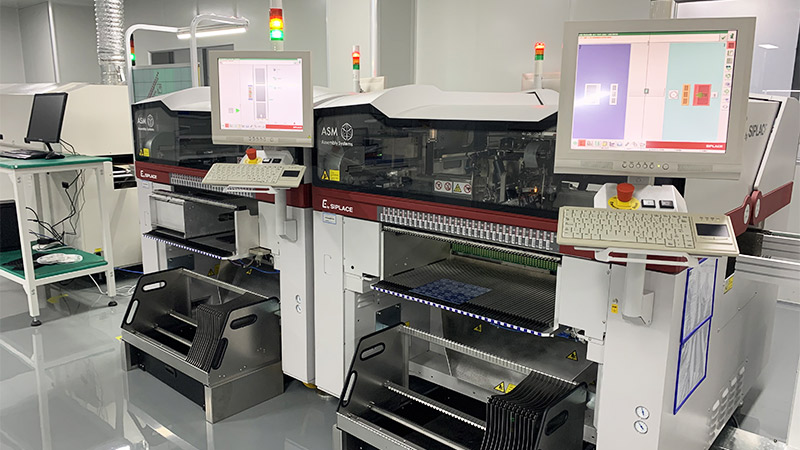

10 high-speed lines use the new Panasonic series high-speed automatic placement machine, automatic SPI, accuracy of 0.0375mm, reducing material loss and early warning probability,

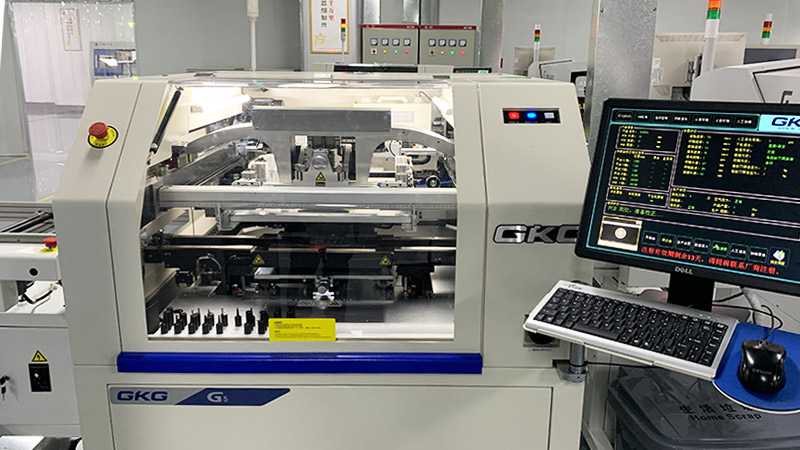

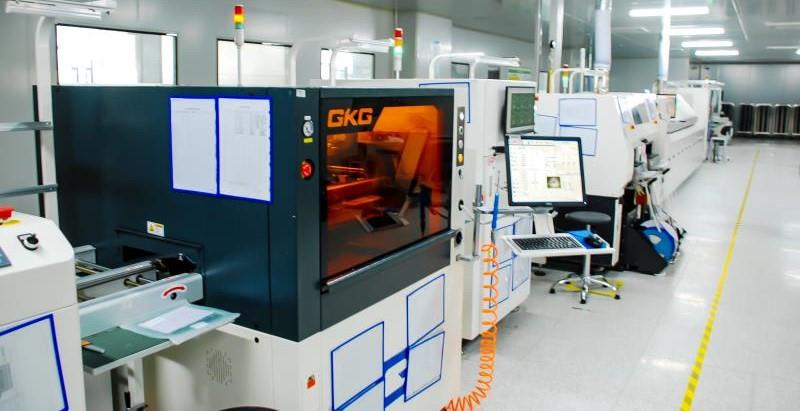

Using GKG G9 solder paste printing machine , solder check SPI solder paste, the production line is equipped with high-end equipment intelligent first testers, etc.
PCBA patch production process

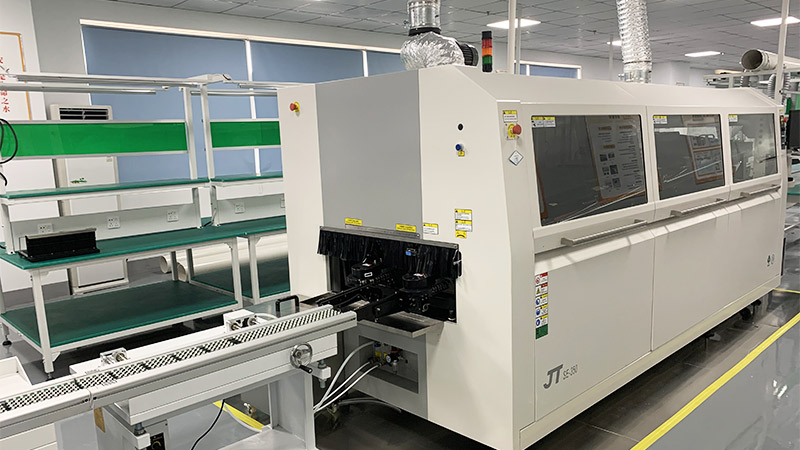

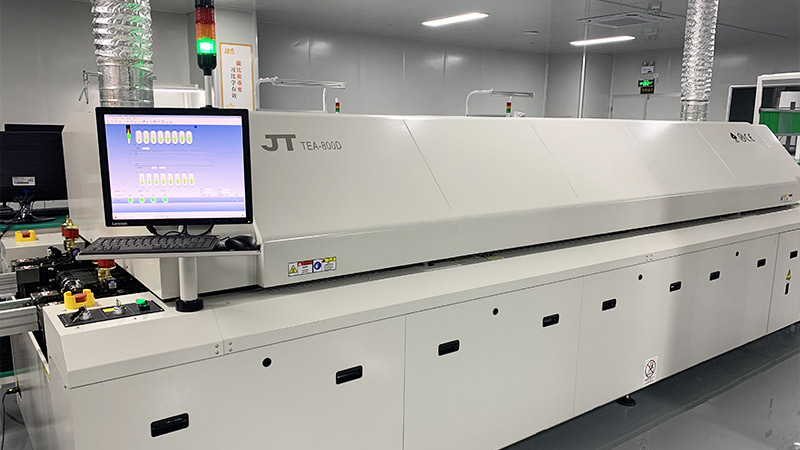

Explorer Technology PCBA speed proofing is committed to speedy intelligent manufacturing. We introduced advanced production equipment such as Siemens to achieve standardized production in screen printing, placement, and reflow soldering, and improve production efficiency.
Establish a linear and efficient production process of "raw material storage-production processing-quality inspection-packaging storage-express delivery".
3000㎡
One hundred thousand class clean workshop
10pieces
Production line
20+sets
Professional machinery and equipment
200+people
Number of employees
Innovation Connection Creation Profession
H17713A
4
72 Hours
46%
H33303A
4
72 Hours
46%
H41072A
4
4 Days
46%
H36117A
4
15 Days
46%
H34939A
4
72 Hours
46%
H68120S5
4
15 Days
46%
H24343A
4
72 Hours
46%
H56759S5
4
6 Days
46%
H17687A
4
12 Days
46%
H40606T2
4
4 Days
46%
H18121A
4
6 Days
46%
H20431A
4
72 Hours
46%
H47580A
4
72 Hours
46%
H27649A
4
7 Days
46%
H61052S5
4
7 Days
46%
H73147A
4
72 Hours
46%
H18532A
2
6 Days
46%
H61684S5
2
24 Hours
46%
H48970A
2
24 Hours
46%
H22833D4
2
48 Hours
46%
China FAW Co., Ltd. Technology Center
Industry Type: Automotive Industry
Service items: pcbaexplorer provides high-performance PCB services for China FAW.
Beijing Institute of Technology
Industry Type: Education
Service items: pcbaexplorer Provide PCB and assembly services for Beijing Institute of Technology with more flexible R&D.
Jiangsu Xugong Construction Machinery Research Institute Co., Ltd.
Industry Type: Construction machinery
Service items:pcbaexplorer Provide fast PCB service for XCMG Research Institute, and increase R&D efficiency by more than 30%.
Shanghai Dashe Industrial Co., Ltd.
Industry Type: Electronic Component
Service items: pcbaexplorer Provide high-end aluminum PCB services to help Dashe Industry quickly seize the market.
Changan University
Industry type: Education
Service items: pcbaexplorer In-depth cooperation with Chang'an University in power control and circuit board design.
12 Layers PCB
Specifications:
Layers: 12 Thickness: 4.0mm Material: FR4 S1000-2 Size: 400*400mm Surface treatment: Immersion gold Line width/spacing: 5/5mil Minimum aperture: 0.35mm Solder mask color: photosensitive green Finished copper thickness: inner layer 1 OZ, outer layer 1 OZFeatures:
1. The integration of the board design is very high, the thickness-to-diameter ratio exceeds 10:1, and the difficulty of electroplating of copper is high. 2. Made of TG170 material

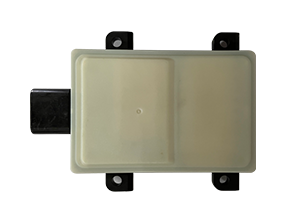

Millimeter Radar
Specifications:
Layers: 12 Thickness: 1.2mm Material: FR4 S1000-2 Size: 290*216mm Surface treatment: Immersion gold Line width/spacing: 3/3mil Minimum hole diameter: 0.10mm Solder mask color: photosensitive blue Finished copper thickness: inner layer 1 OZ ,outer layer 1 OZFeatures:
1. Blind and buried vias design, complex structure, second-degree HDI; blind holes L1-L2, L7-L8, buried holes L2-L3, L3-L6, L6-L7; through holes L1-L8 2. In the production process, need to do multiple times stack up, and the precision needs to be extremely high;

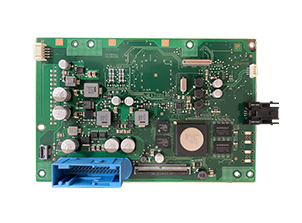

i.MX6 automotive cluster board
Specifications:
Layers: 8 Thickness: 1.0mm Material: FR4 S1000-2 Size: 290*216mm Surface treatment: Immersion gold Line width/spacing: 3/3mil Minimum hole diameter: 0.10mm Solder mask color: photosensitive blue Finished copper thickness: inner layer 1 OZ ,outer layer 1 OZFeatures:
1. Blind and buried vias design, complex structure, second-degree HDI; blind holes L1-L2, L7-L8, buried holes L2-L3, L3-L6, L6-L7; through holes L1-L8 2. In the production process, need to do multiple times stack up, and the precision needs to be extremely high;
Millimeter Radar
Specifications:
Layers: 4 Thickness: 3.0mm Material: FR4 S1000-2 Size: 175*104mm Surface treatment: Immersion gold Line width/spacing: 12/12mil Minimum aperture: 0.5mm Solder mask color: photosensitive green Finished copper thickness: inner layer 6 OZ, outer layer 6 OZFeatures:
The finished copper thickness of the outer/inner layer is 6 OZ,. It is often used in high-power equipment.

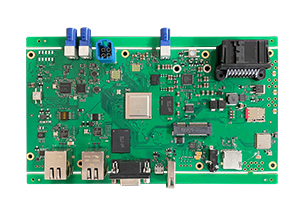

i.MX8XP Domain Controller
Specifications:
Layers: 2 Thickness: 1.6mm Material: FR-4 Goldenmax TG130 Size: 171.4*222.1mm Surface treatment: Immersion gold Line width/spacing: 8/8mil Minimum aperture: 0.4 Solder mask color: green Finished copper thickness: 1 OZ
AI Camera Board
Specifications:
Layers: 2 Thickness: 1.6mm Material: FR-4 Guoji TG130 Size: 145*206mm Surface treatment: Immersion gold Line width/spacing: 10/10mil Minimum aperture: 0.4 Solder mask color: green Finished copper thickness: 1 OZ
i.MX8XP Domain Controller
Specifications:
Layer: 1 Thickness: 1.6mm Material: FR-4 Goldenmax TG130 Size: 176*165mm Surface treatment: Immersion gold Line width/spacing: 10/10mil Minimum aperture: 0.4 Solder mask color: matte black Finished copper thickness: 1 OZ
AI Camera Board
Specifications:
Layers: 1 Board thickness: 1.0mm Material: Aluminum base Size: 180*120mm Surface treatment: OSP Line width/spacing: 12/12mil Minimum aperture: NA Solder mask color: white Finished copper thickness: 2 OZFeatures:
Pure aluminum PCB, good heat dissipation performance; S un 2000 series ink, no discoloration after high temperature baking; used in environments with high heat dissipation performance requirements.
